GAMMA GM6024R
Fiber Laser Cutting MachinesGAMMA

GAMMA GM6024R

Tube & Profile Fiber Laser with Swiss 3D Cutting Head

Model: GM6024R

A 6-metre tube and profile laser with a Raytools Swiss 3D cutting head, a 240 mm pneumatic square chuck with follow-up support and ±0.02 mm repeat accuracy. Round and square sections up to 230 mm, cut, notched and bevelled in one setup.

  • Raytools Swiss 3D cutting head multi-angle cutting and complex shapes with consistent quality across thicknesses

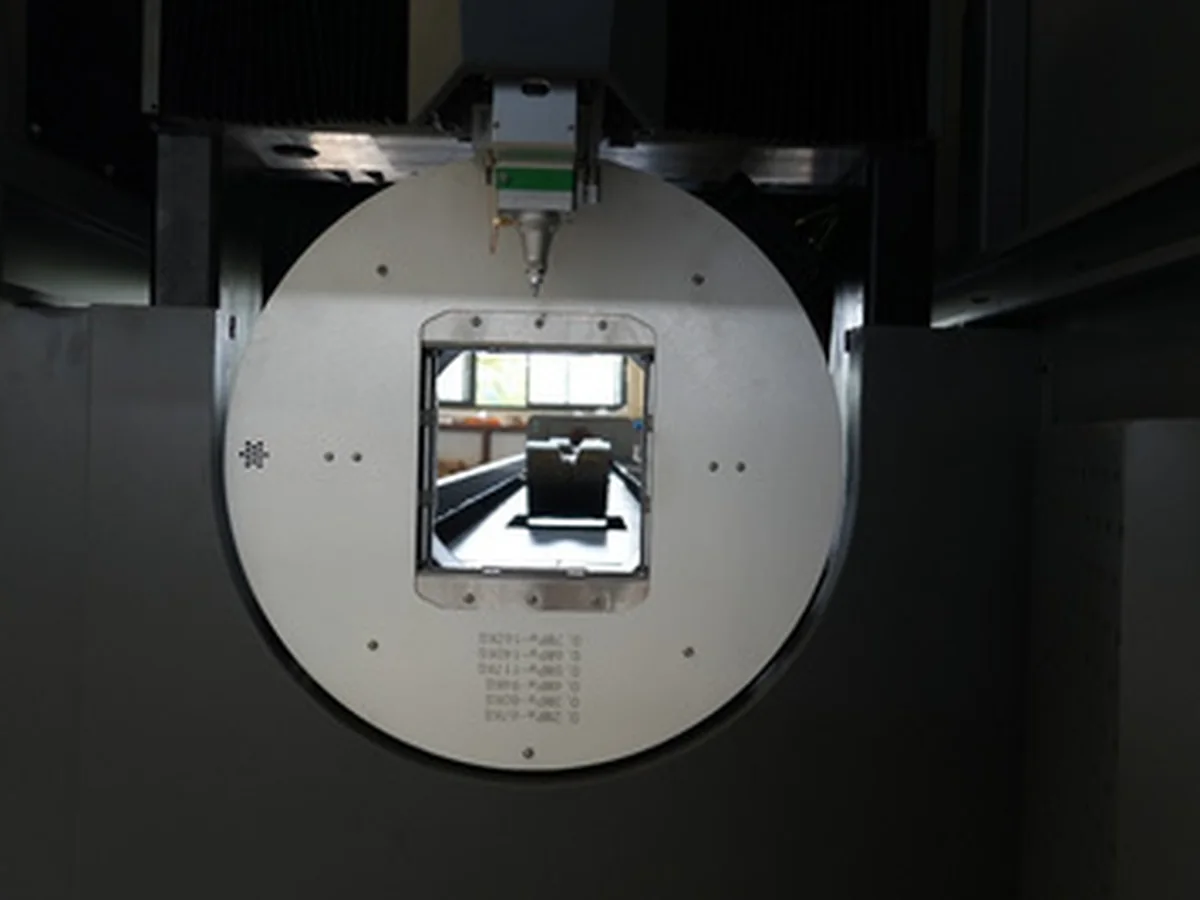

  • 240 mm pneumatic square chuck with a wide clamping range and large bearing capacity
  • Follow-up support module holds slender tubes from several directions, so long thin sections stay clamped and straight

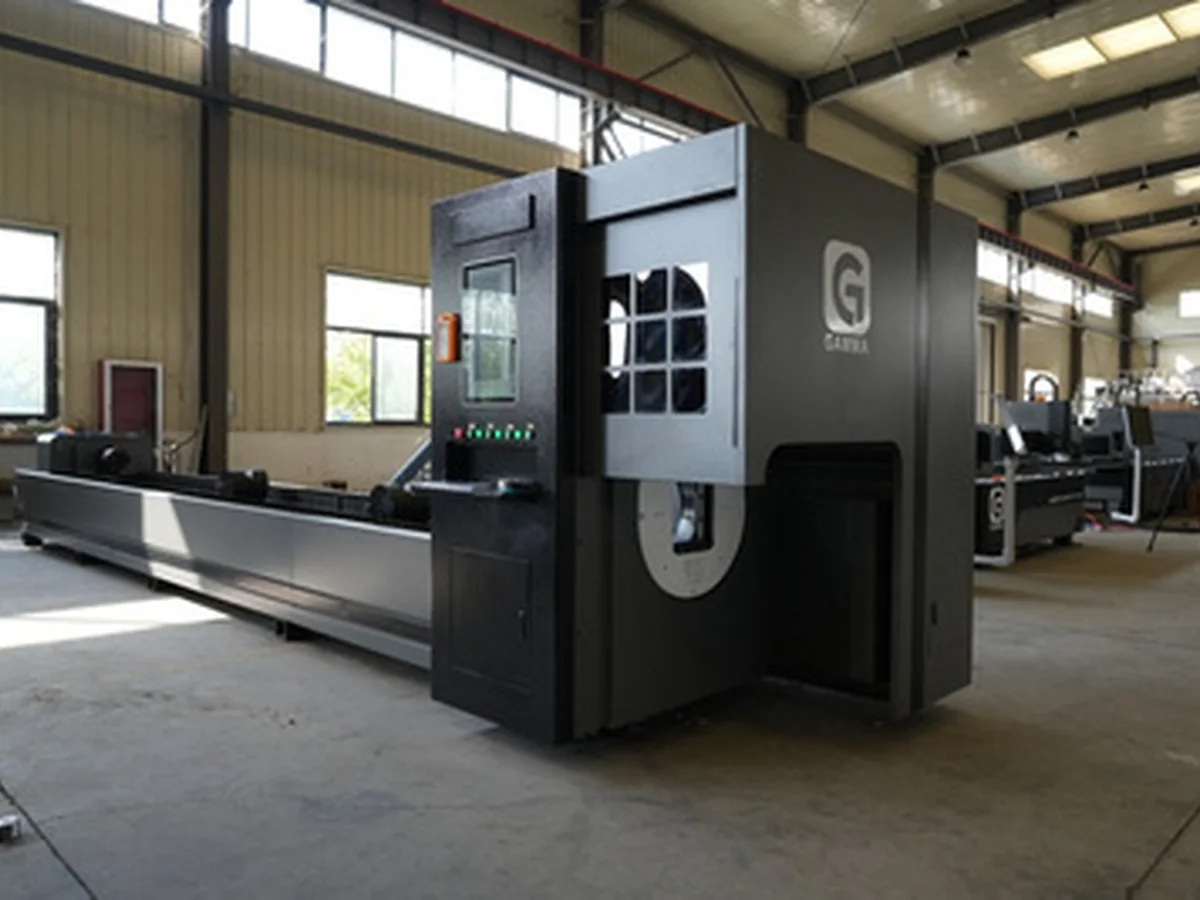

  • Repeat positioning accuracy of ±0.02 mm over the full 6-metre length
  • Shimpo gearbox (Japan), YYC rack and pinion, HIWIN 30 rails and TBI ball screws
  • Raytools Swiss 3D cutting head multi-angle cutting and complex shapes with consistent quality across thicknesses
  • 240 mm pneumatic square chuck with a wide clamping range and large bearing capacity
  • Follow-up support module holds slender tubes from several directions, so long thin sections stay clamped and straight
  • Repeat positioning accuracy of ±0.02 mm over the full 6-metre length
  • Shimpo gearbox (Japan), YYC rack and pinion, HIWIN 30 rails and TBI ball screws

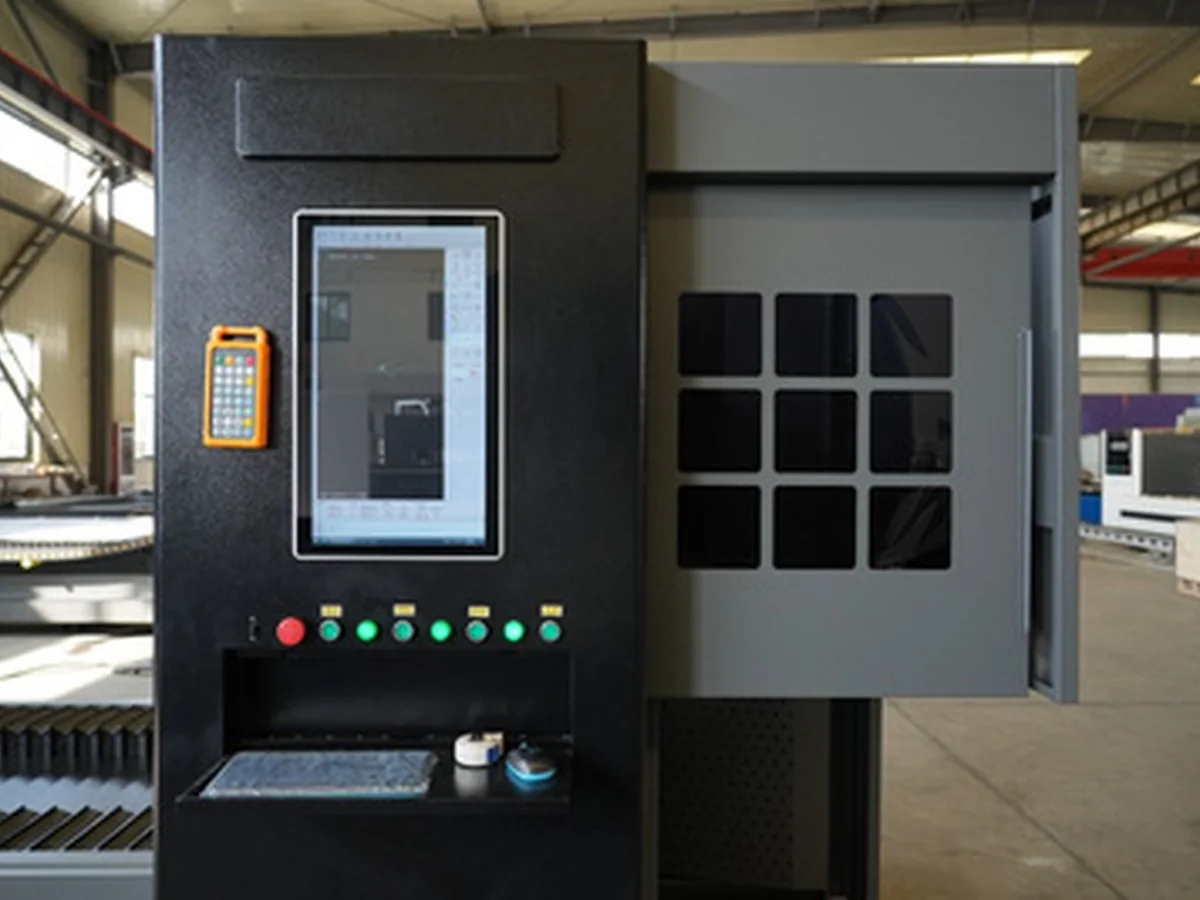

  • Wireless remote controller for loading and set-up from the machine side
  • Supplied with a voltage stabiliser / UPS, steel dust cover and Hanli industrial chiller
  • 3 kW MAX source as standard the machine platform accepts up to 6 kW
Machine modelGM6024R
Laser power3 kW MAX (machine capability up to 6 kW)
Cutting headRaytools 3D, Swiss origin
Maximum tube diameter230 mm, round and square
Maximum tube length6,000 mm
Chuck240 pneumatic square chuck with follow-up support
Repeat positioning accuracy±0.02 mm
Dimensions10,000 × 2,100 × 2,300 mm
Voltage380 V / 3P / 50 Hz
Motors and drivesInovance
GearboxJapanese Shimpo
Gear and rackYYC
RailsOriginal Taiwan HIWIN rail 30
Ball screwOriginal Taiwan TBI
Proportional valveJapan SMC
Remote controllerWireless remote controller
Dust coverSteel dust cover
StabiliserSupplied with stabiliser / UPS
Water chillerHanli industrial chiller

Ideal for: steel structures, furniture and shelving, fitness equipment, guardrails and fencing, agricultural and heavy equipment frames, and any workshop cutting round, square or rectangular sections.
