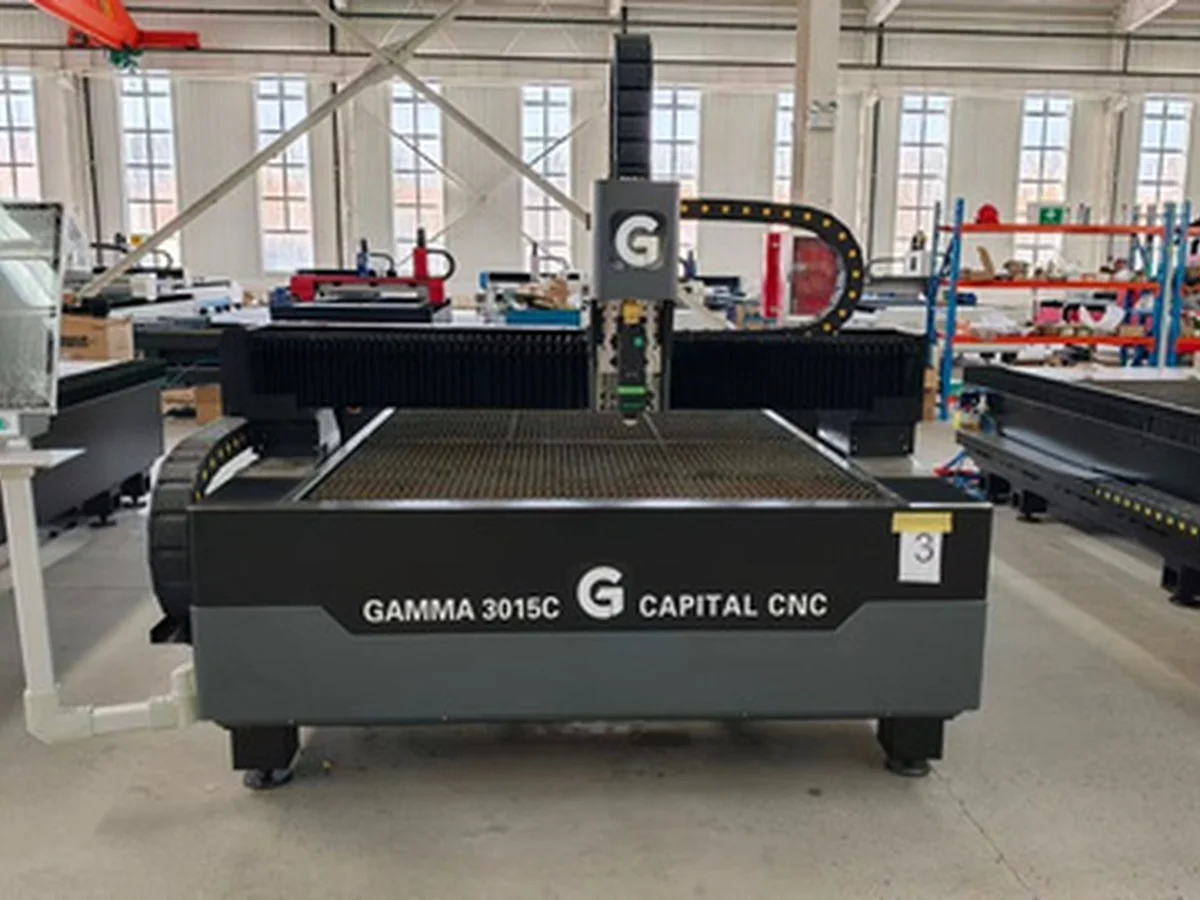

GAMMA Model C LF3015C / LF4020C
Fiber Laser Cutting MachinesGAMMA

GAMMA Model C LF3015C / LF4020C

Open-Bed Fiber Laser Cutting Machine, 3–6 kW

Models: LF3015C · LF4020C

The workshop machine: 3 kW or 6 kW MAX fiber source, a Raytools automatic-focus head and a 1.5 × 3 m or 2 × 4 m bed, on HIWIN rails and TBI ball screws. The fastest way to bring sheet cutting in-house without moving to a large-format system.

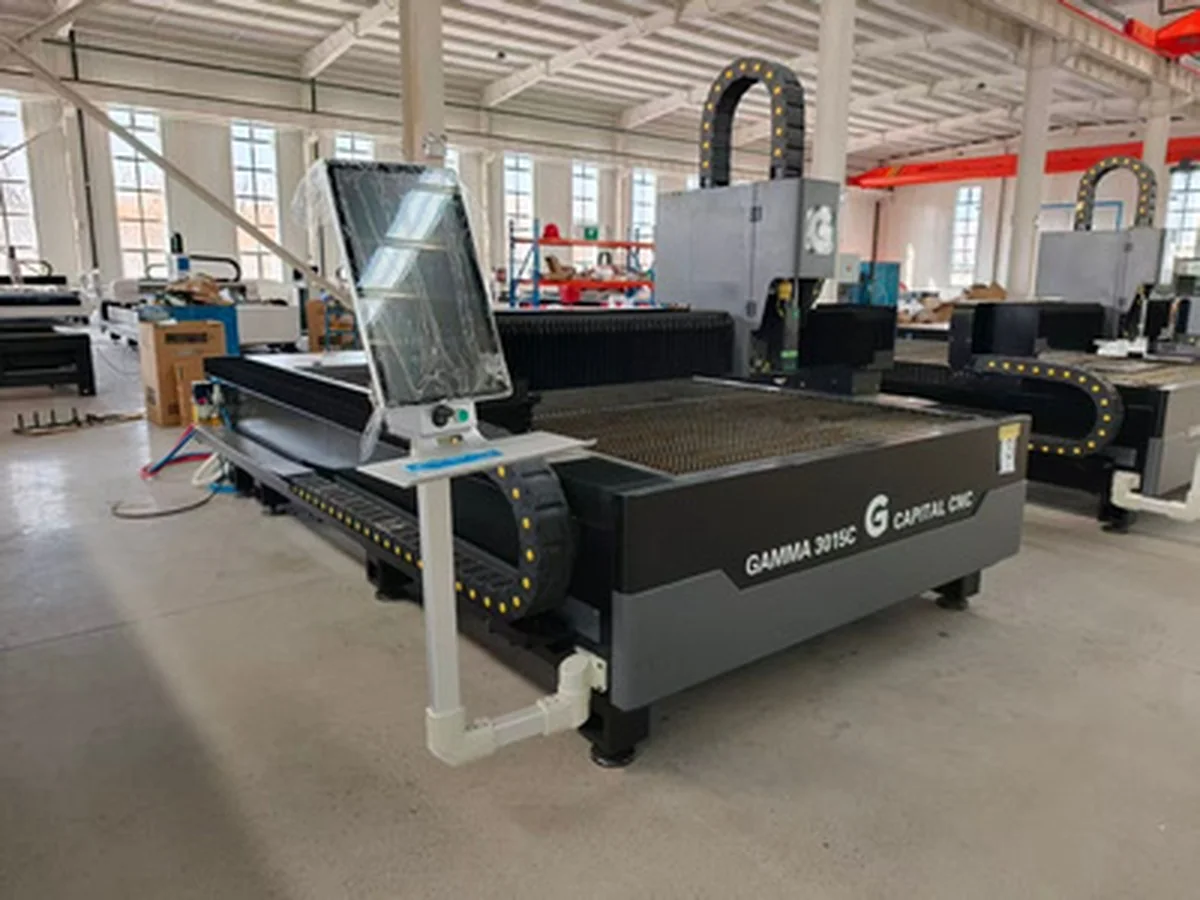

  • Raytools automatic focus cutting head real-time focus adjustment to the material thickness, less setup time and better edges
  • MAX fiber laser source 3,000 W or 6,000 W, stable output and low maintenance
  • Original Taiwan HIWIN guideways and TBI ball screws for accurate, repeatable positioning
  • Shimpo precision planetary gearbox and an aluminium gantry for high acceleration
  • Japanese SMC proportional valve stable, precisely controlled cutting gas pressure
  • Raytools automatic focus cutting head real-time focus adjustment to the material thickness, less setup time and better edges
  • MAX fiber laser source 3,000 W or 6,000 W, stable output and low maintenance
  • Original Taiwan HIWIN guideways and TBI ball screws for accurate, repeatable positioning
  • Shimpo precision planetary gearbox and an aluminium gantry for high acceleration
  • Japanese SMC proportional valve stable, precisely controlled cutting gas pressure
  • Hanli industrial water chiller and red-dot positioning as standard
Machine modelLF3015C / LF4020C
Laser power3,000 / 6,000 W
Laser sourceMAX
Cutting headRaytools automatic focus
Working area1,500 × 3,000 mm / 2,000 × 4,000 mm
Voltage380 V / 3P / 50 Hz
Motors and drivesGAMMA motors and drivers
RailsOriginal Taiwan HIWIN
Ball screwOriginal Taiwan TBI
Proportional valveJapan SMC
Positioning systemRed dot indicator
Water chillerHanli industrial chiller

Ideal for: automobile manufacturing, machinery, electrical panels, hotel and kitchen equipment, elevator equipment, signage and advertising, sheet-metal production, lighting and hardware fittings, display equipment and precision parts.

Materials: stainless steel, mild steel, galvanized and electro-galvanized steel, brass, copper, aluminium, manganese steel and alloys.
