MQA50120J

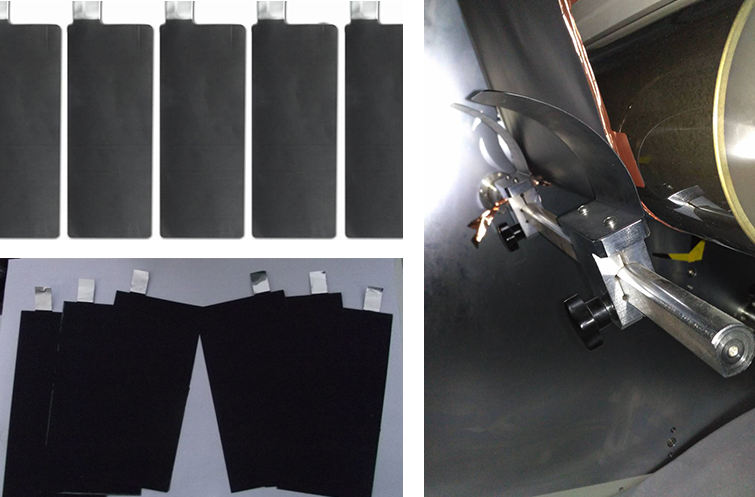

Laser Die-Cutting & Slitting Machine for Battery Electrodes

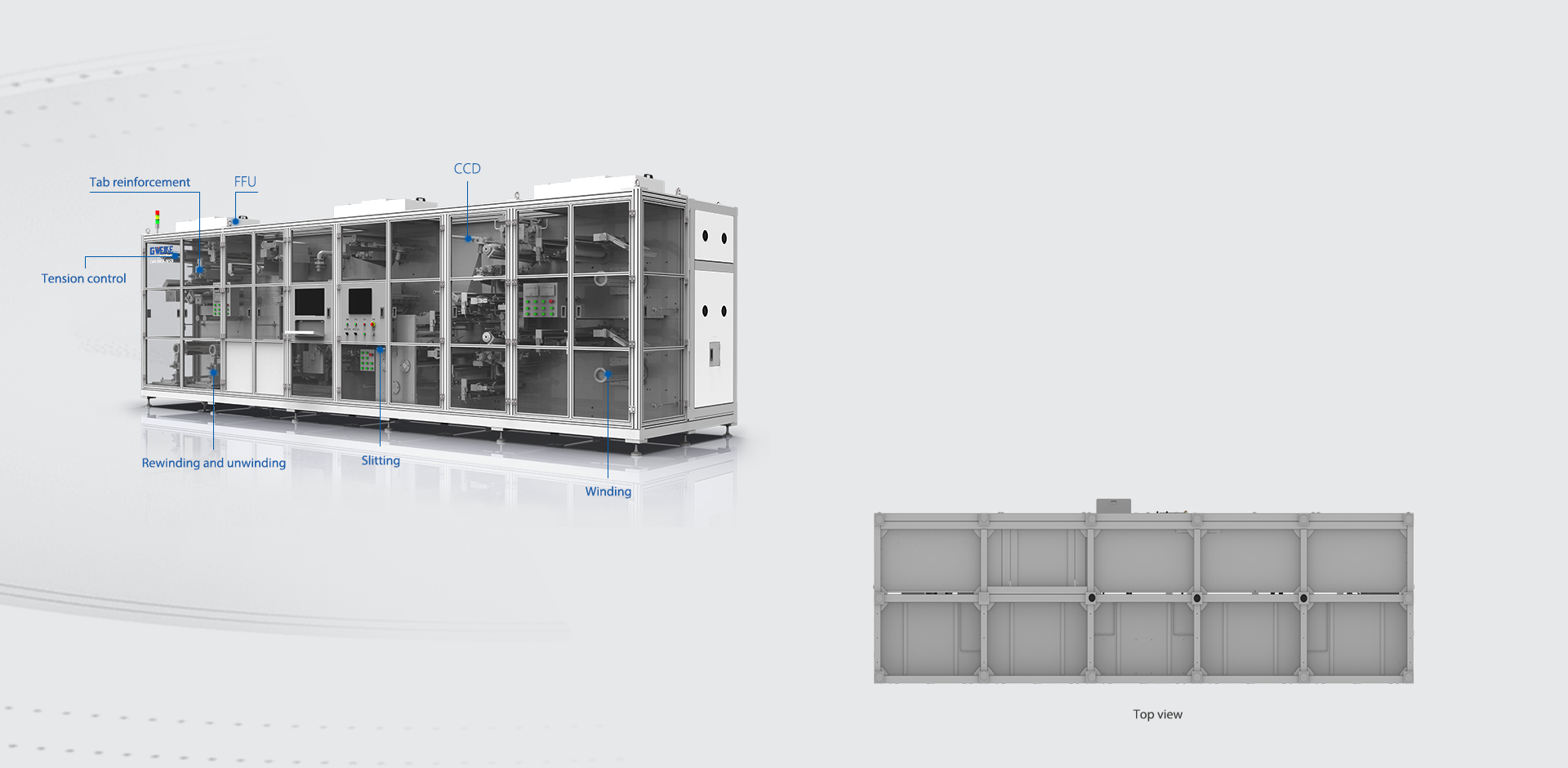

An integrated line for the die-cutting and slitting stages of new-energy battery production. Laser tab cutting, slitting, CCD inline inspection and dust extraction in one machine.
| Compatible material width | 220 – 500 mm |
|---|---|
| Tension control | 5 – 100 N, accuracy ≤ ±3 N |
| Travel correction accuracy | ±0.1 mm |
| Slitting width deviation | ≤ ±0.2 mm |
| Rewinding alignment | ≤ ±0.5 mm |
| Single machine capacity | 60 – 80 m/min |
| Electrode yield | ≥ 99.5% |
| Equipment failure rate | ≤ 2% |
