GWEIKE Laser Marking & Special Laser MachinesGWEIKE
LF20S
Fully Enclosed Fiber Laser Marking Machine
A plug-and-play enclosed laser marker with Class 1 protection. The laser stops automatically when the door opens.

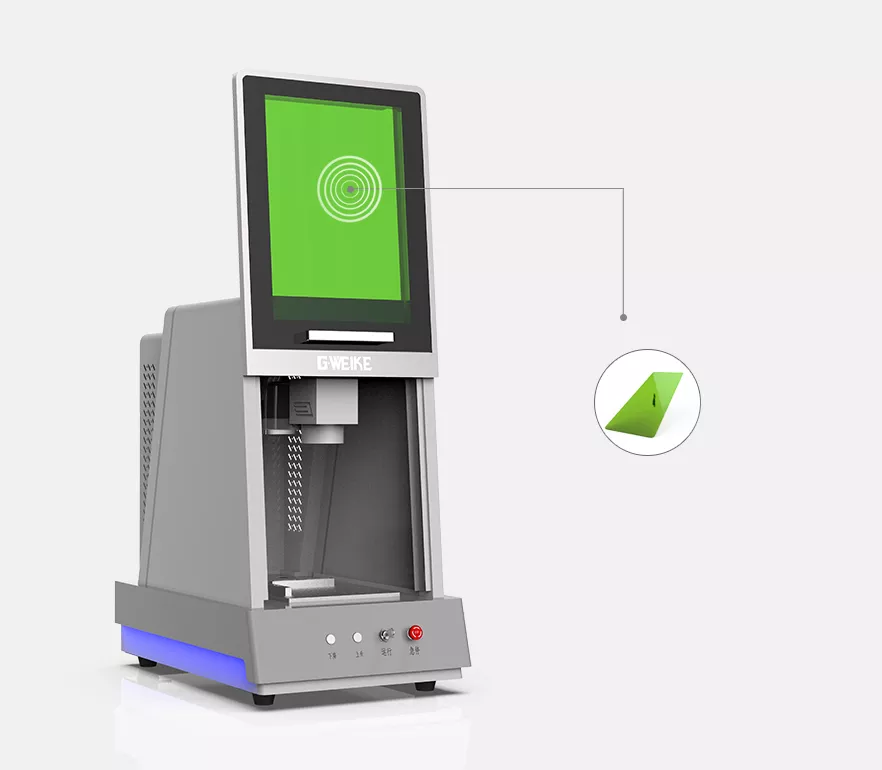

- CE protective cover and Class 1 protection with door interlock

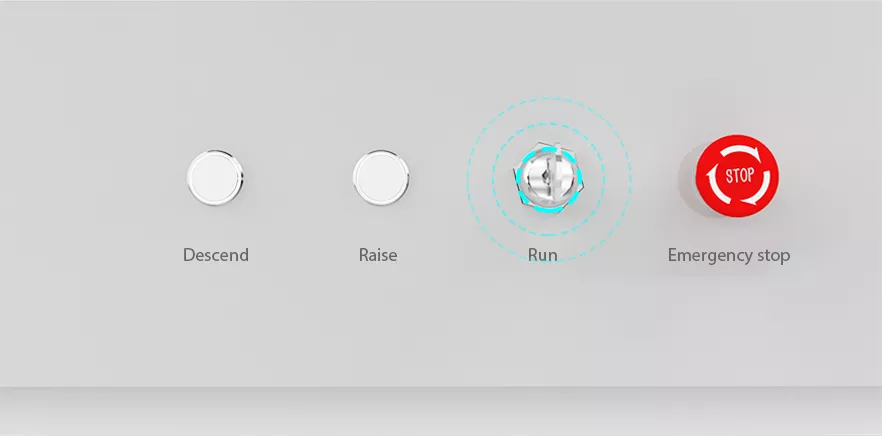

- All-in-one design just plug in and mark

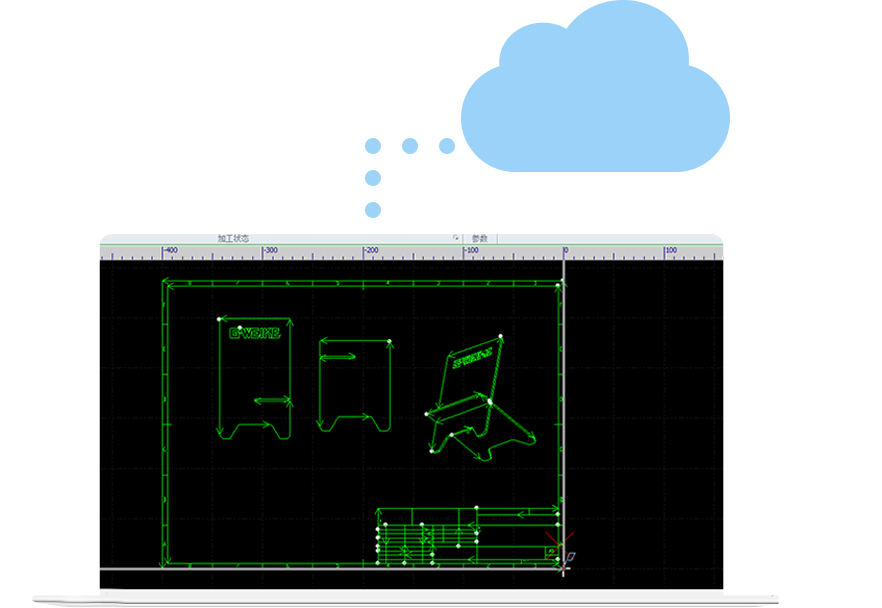

- Smart GWEIKE Cloud for real-time data and status monitoring
- WiFi hotspot for wireless control
- Compact and portable
| Laser power | 20 / 30 W |
|---|---|
| Laser wavelength | 1060 – 1070 nm |
| Repetition frequency | ≤ 50 kHz |
| Standard marking area | 110 × 110 mm / 175 × 175 mm |
| Marking depth | ≤ 2 mm |
| Marking speed | ≤ 7000 mm/s |
| Minimum character size | 0.4 mm |
| Repeat accuracy | ±0.01 mm |
Marks: metals including stainless steel and rare metals, alumina, engineering plastics, coated and plated materials, rubber, epoxy resin and ceramics.
Ideal for: electronics, appliances, sanitary ware, tools, knives, auto parts, cookware, jewelry and nameplates.
