Bending MachinesGWEIKE
GKS-BC3015

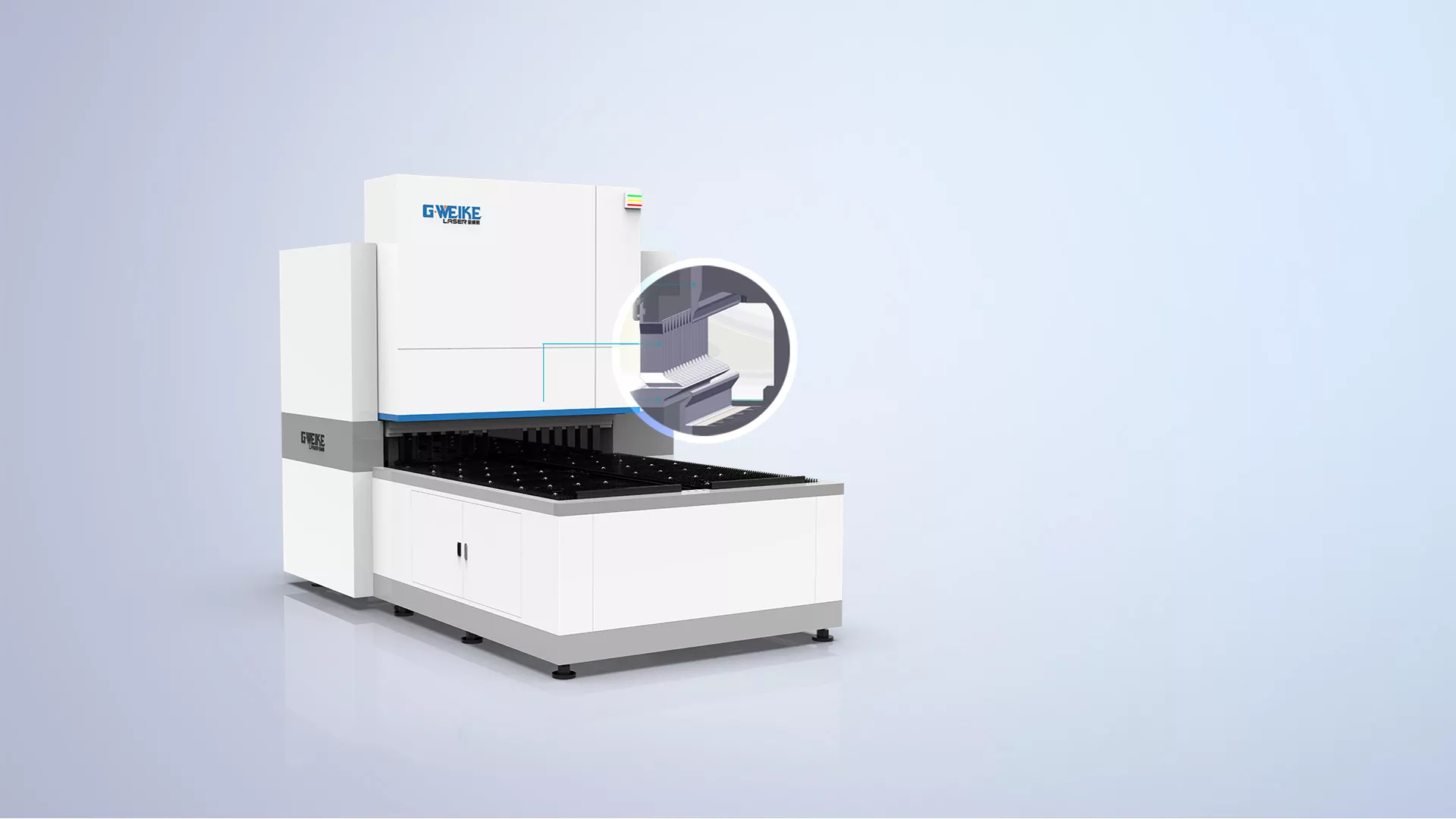

Automatic Panel Bending Machine
Fully automatic bending of all four sides of a panel, with a universal bending tool that never needs changing. Right angles, non-right angles, arcs and flattening in one program.
- 10 CNC axes as standard 11 or 12 axes optional
- Universal bending tool no tool changes between parts
- Bending angle 0 – 180° with CNC-linked die for right, non-right, arc and flattening bends

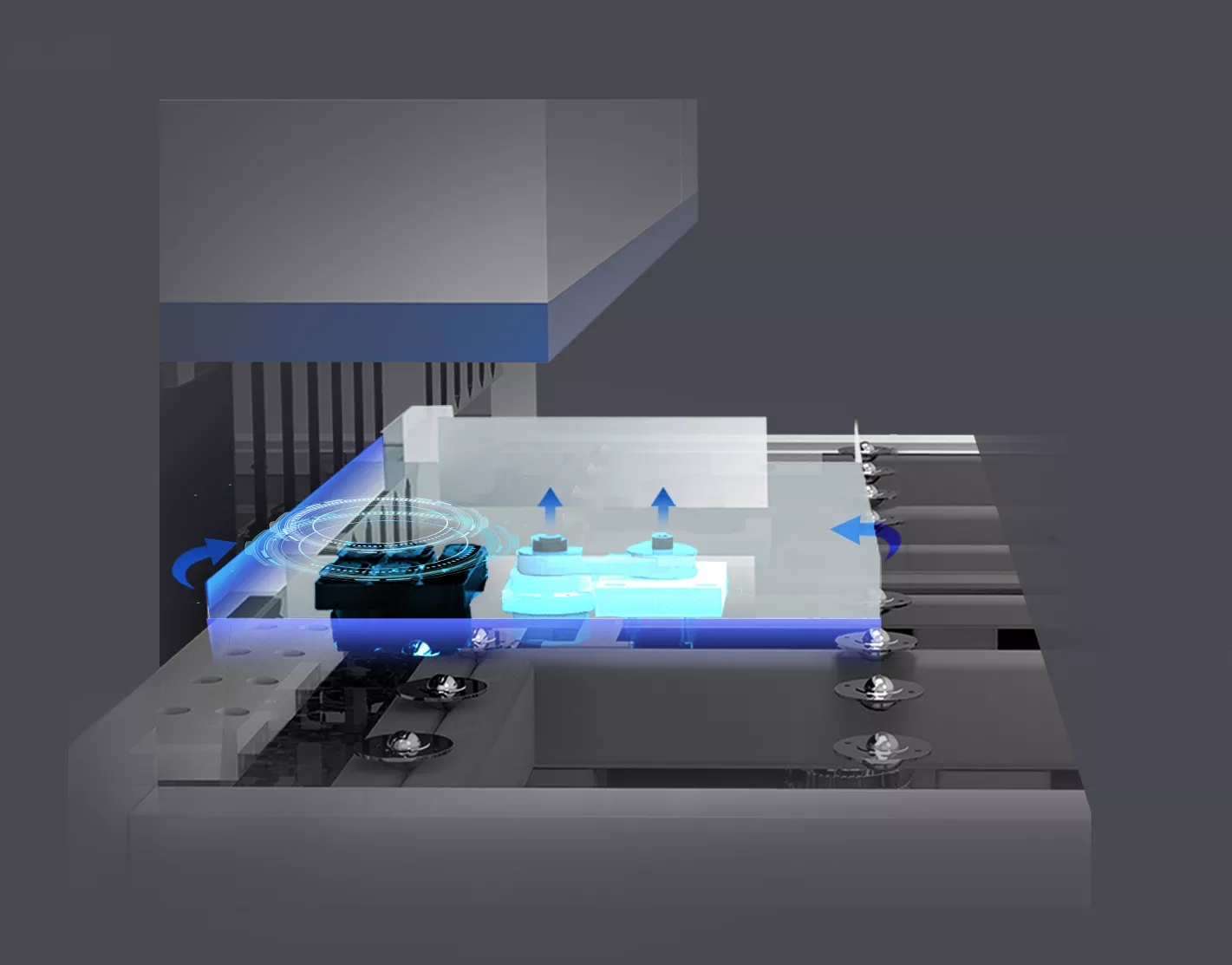

- Suction-cup lifting device prevents friction marks when a folded side is lifted
- Machine body stress-relieved by 600 °C heat treatment
- 10 CNC axes as standard 11 or 12 axes optional
- Universal bending tool no tool changes between parts
- Bending angle 0 – 180° with CNC-linked die for right, non-right, arc and flattening bends
- Suction-cup lifting device prevents friction marks when a folded side is lifted
- Machine body stress-relieved by 600 °C heat treatment

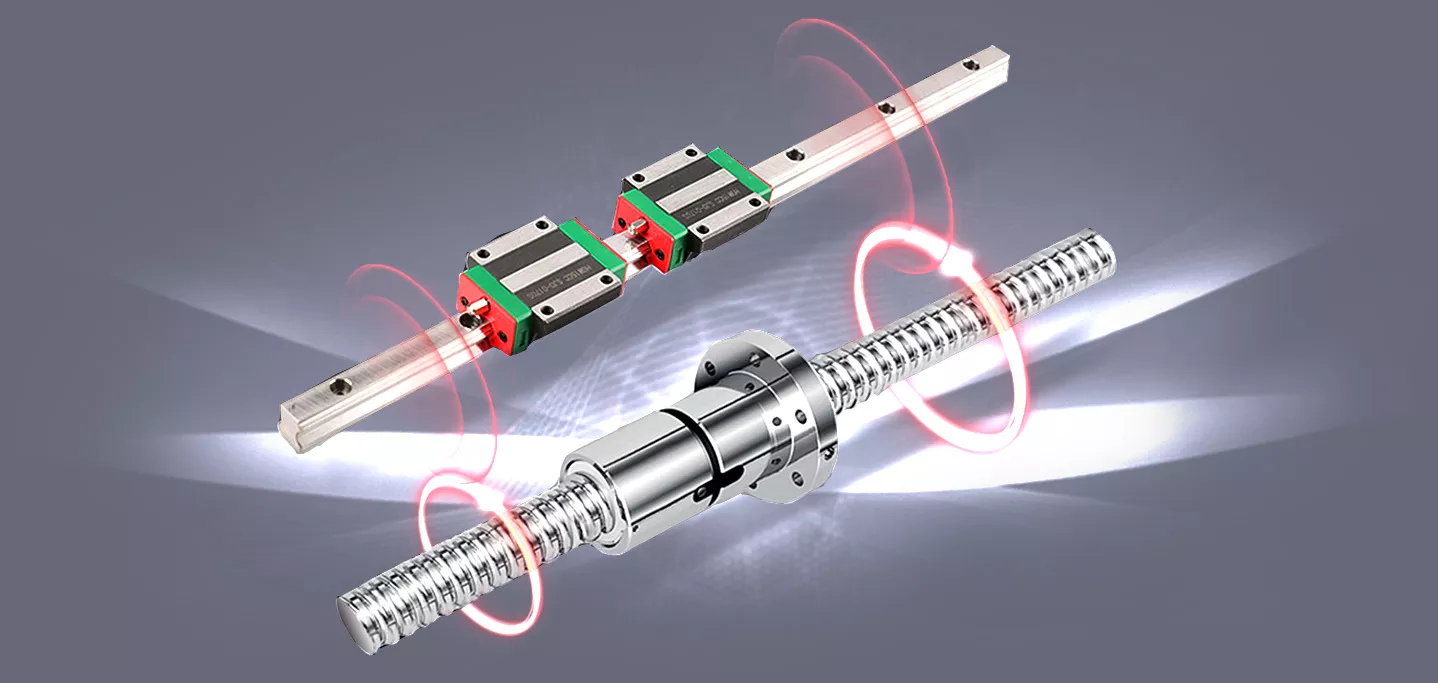

- Linear guides and ball screws by Taiwan HIWIN, PMI and TBI
| Bending length | 1500 mm |
|---|---|
| Maximum sheet length | 1600 mm |
| Maximum sheet width | 1250 mm |
| Maximum sheet thickness | Carbon steel 1.5 mm · Stainless steel 1 mm · Aluminum 2 mm |
| Upper/lower tool distance | 175 mm |
| Bending angle | 0 – 180° |
| Bending height | 170 mm |
| Minimum four-side forming size | 320 × 200 mm |
| Minimum arc radius | 1.2 mm |

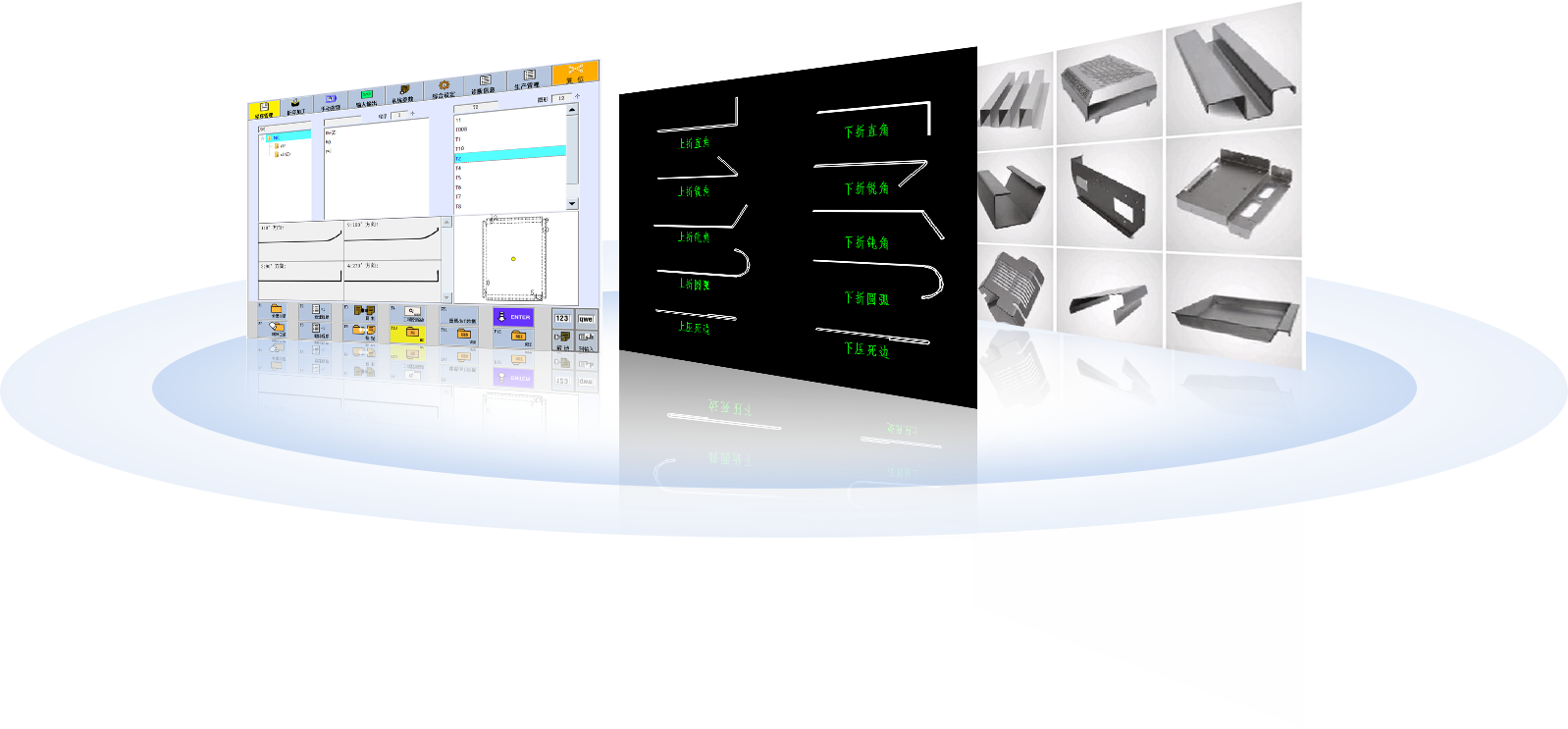

| CNC system | NLKER |
| Operating system | Linux |
| Suction cup size | 190 × 130 mm |
| Machine weight | 8 t |
Ideal for: steel cabinet shells (filing, tool, electrical, communication and meter cabinets), refrigerators, air conditioners, stoves, furniture, ventilation and purification equipment, doors, elevators.
