Fiber Laser Cutting MachinesGWEIKE
T3 Series
Three-Chuck Tube Laser
Models: GKS-6036T3 · GKS-9036T3 · GKS-12036T3

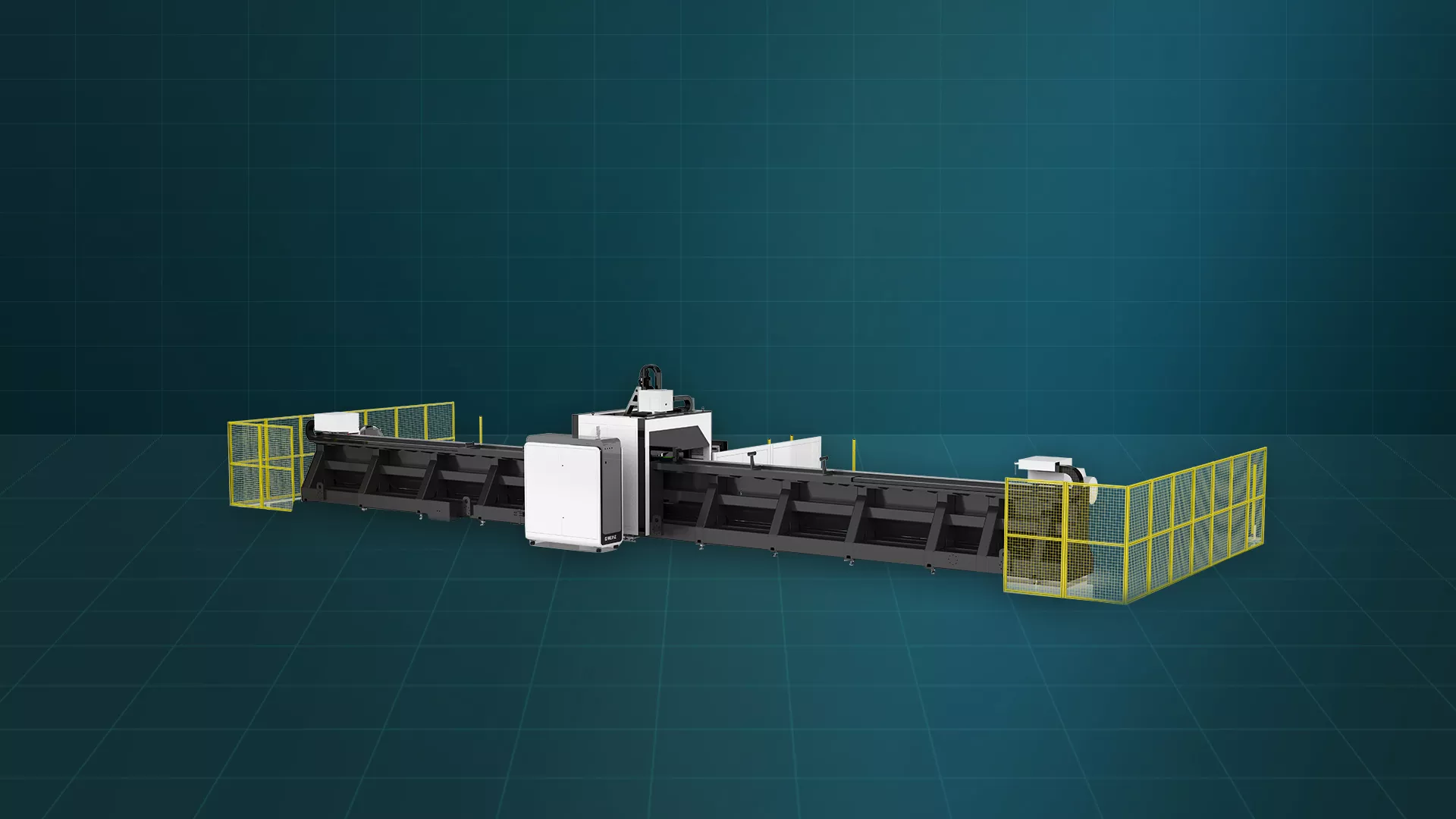

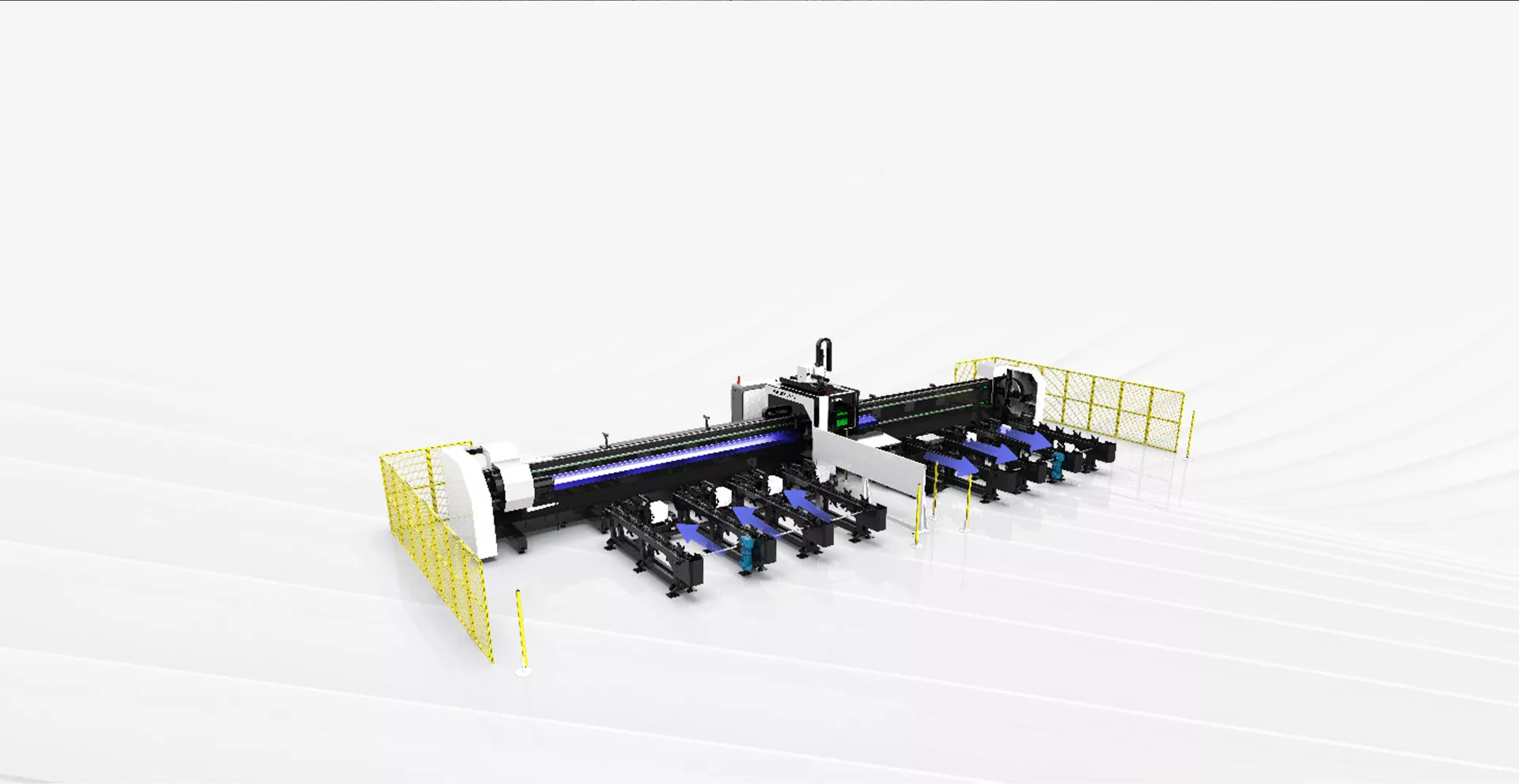

Side-mounted three-chuck heavy-duty tube cutter with zero-tailing cutting, semi-automatic side loading and unloading, and whole-tube cutting up to 12 meters.
| Specification | GKS-6036T3 | GKS-9036T3 | GKS-12036T3 |
|---|---|---|---|
| Laser power | 3,000 – 12,000 W | 3,000 – 12,000 W | 3,000 – 12,000 W |
| Clamping range | Round Φ30 – 350 mm · Square □30 – 350 mm | Round Φ30 – 350 mm · Square □30 – 350 mm | Round Φ30 – 350 mm · Square □30 – 350 mm |
| Maximum rotation speed | 60 r/min | 60 r/min | 60 r/min |
| Effective cutting length | 6500 mm | 9500 mm | 12500 mm |
| Repeat positioning accuracy | ±0.03 mm | ±0.03 mm | ±0.03 mm |
| Single tube load | 1,200 kg | 1,200 kg | 1,200 kg |
Ideal for: steel structures, construction machinery, oil and gas piping, agricultural and heavy equipment.
