TG Series

Front Over-Positioning Tube Laser

Models: GKS-6024TG · GKS-9024TG

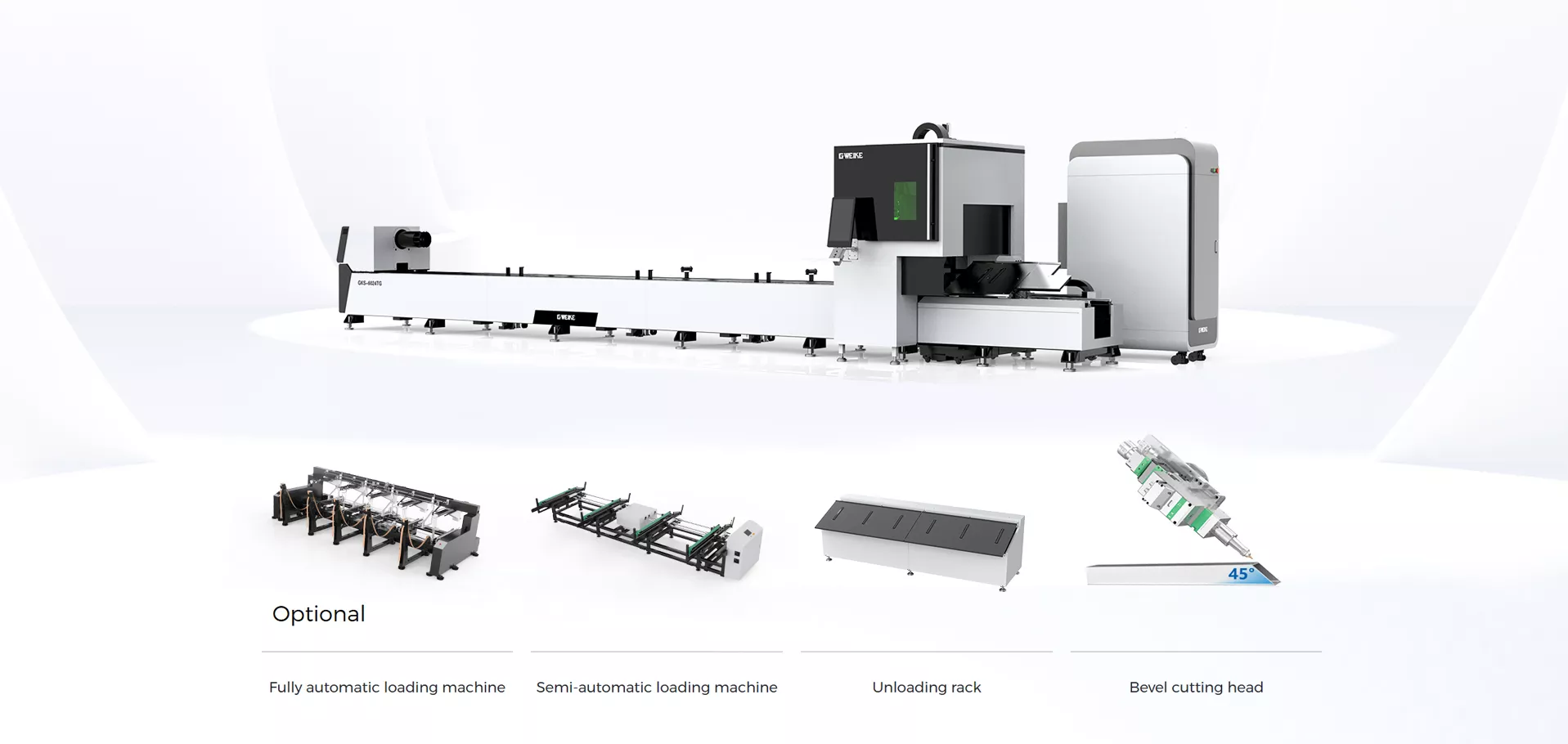

Front over-positioning cutting with a full-mobility front chuck (tailing as short as 30 mm), side-mounted bed and modular options: unloading racks, automatic or semi-automatic loaders and bevel cutting heads. Cuts round, square, rectangular, oval and irregular tubes.

Chat on WhatsApp

Specification	GKS-6024TG	GKS-9024TG
Laser power	1,500 – 6,000 W (optional)	1,500 – 6,000 W (optional)
Round tube	Φ20 – 240 mm	Φ20 – 240 mm
Square tube	□20 – 240 mm	□20 – 240 mm
Maximum rotation speed	100 r/min	100 r/min
Effective cutting length	6500 mm	9500 mm
Single tube load	300 kg	300 kg
Chuck	240 / 280 pneumatic	240 / 280 pneumatic
